AliRail Insight Glass 0.74kN System Passes Rigorous Load Testing by Accolade Measurements

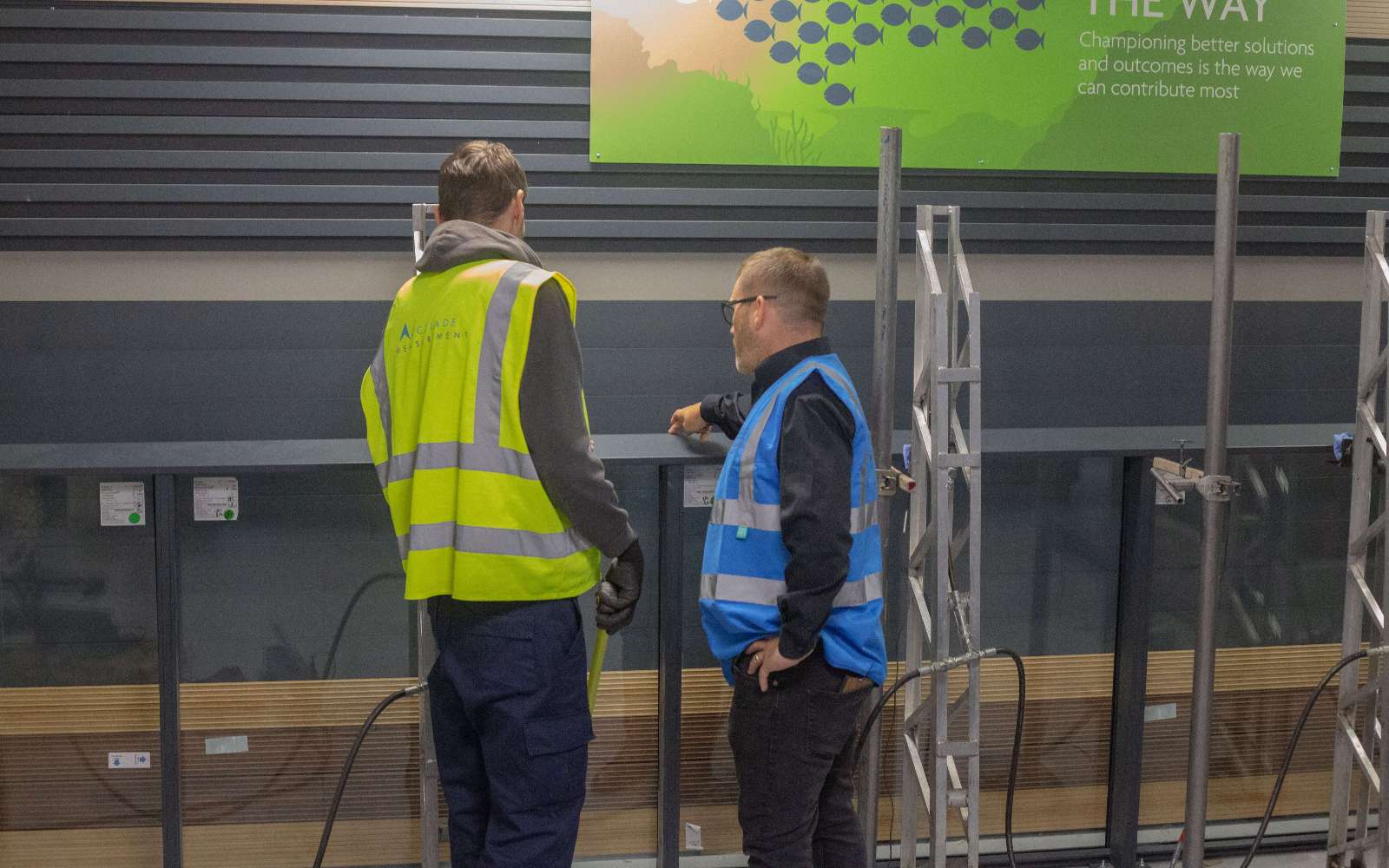

We are pleased to announce that our AliRail Insight Glass 0.74kN option has successfully passed rigorous testing at our head office in Rochester, Kent, conducted by Accolade Measurements. This milestone confirms that Insight Glass meets the required standards and is now available for specification in projects across the UK and Ireland, with several projects already in the pipeline.

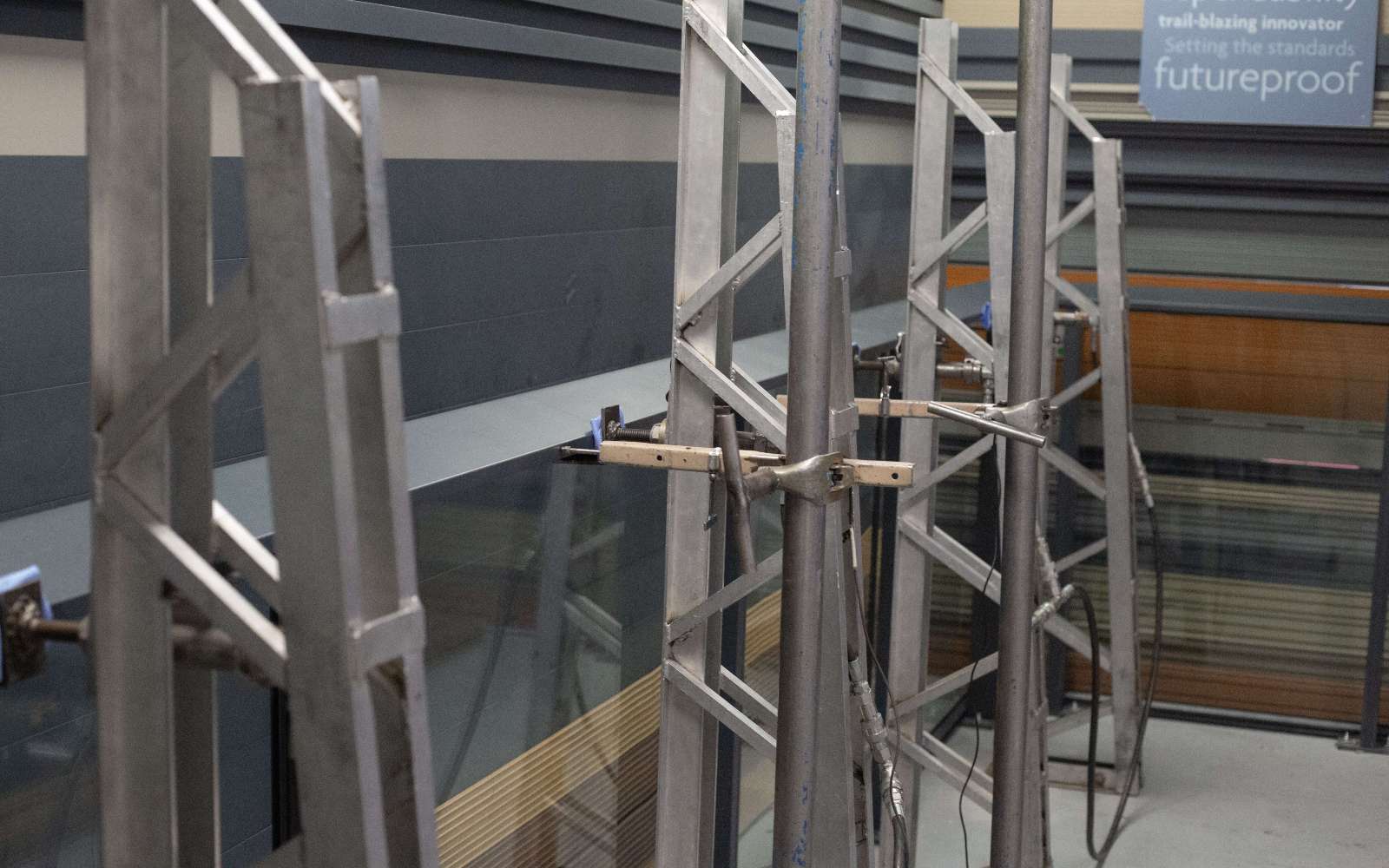

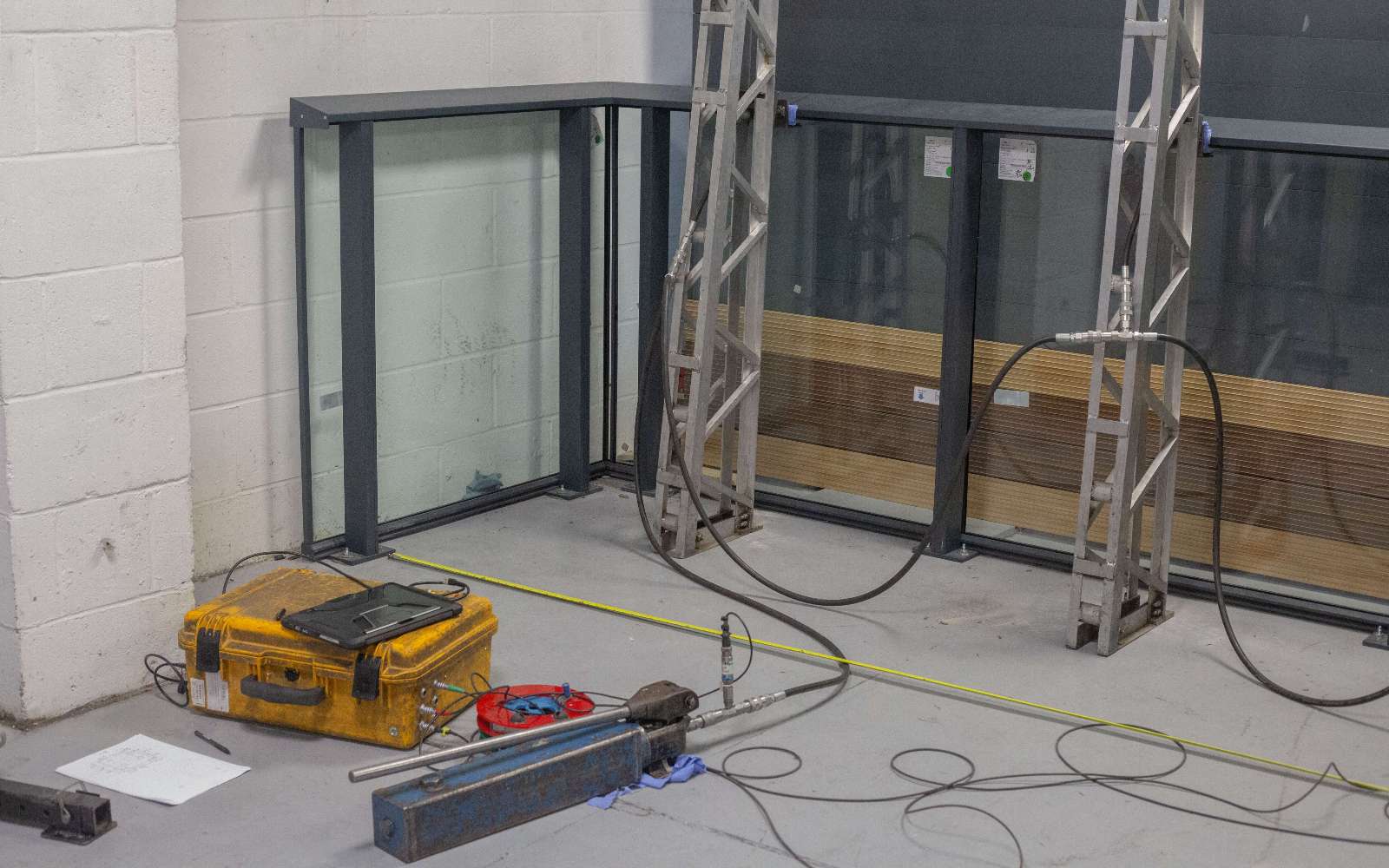

The AliRail Insight Glass 0.74kN system is an ideal solution for residential glass balustrades on steel balconies, fully compatible with all AliDeck brands and their A-Rated Fire Safe solutions. The system has been load tested in accordance with BS 6180:2011 standards, ensuring a horizontal line load of 0.74kN/m, an infill point load of 0.5kN, and an infill distributed load of 1.0kN/m².

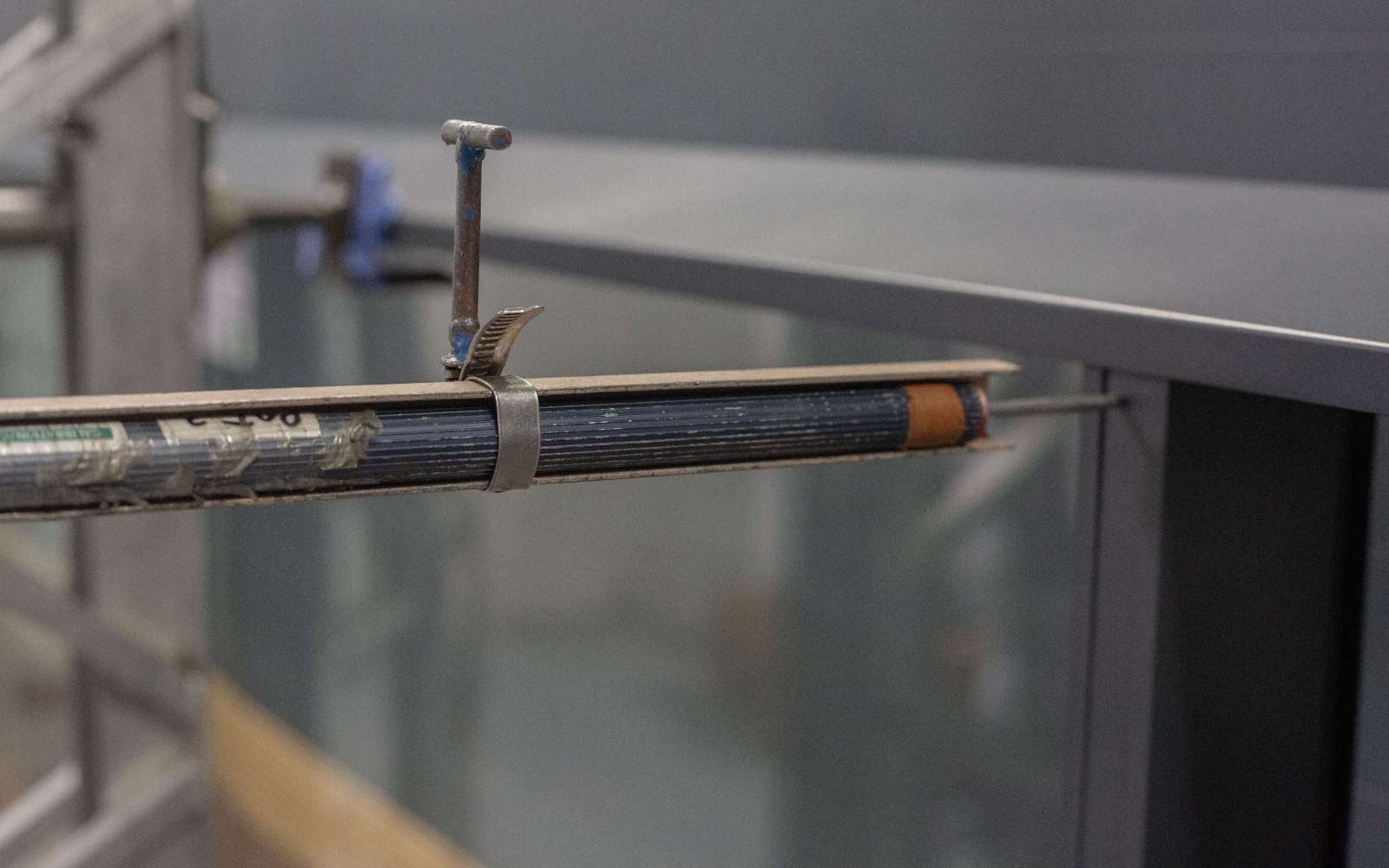

Our Insight Glass non-combustible balustrade system can be specified with glass thicknesses ranging from 10.8mm to 19mm. For projects exceeding 11 meters in height, we recommend using 19mm fire-safety Pyroguard glass to ensure full compliance with A2-s1, d0 fire rating standards. This glass option also passed the required point load testing, deflecting only 1.6mm, well within the 16mm tolerance, making it ideal for high-rise buildings as it ensures both safety and aesthetic appeal.
Key benefits of our Glass Balustrade Systems include:
1. Fire Resistant Glass: Achieves A2-s1, d0 fire rating with 19mm glass.
2. Durability: Constructed entirely from 100% aluminium, including up to 67% recycled material, making it eco-friendly and sustainable.
3. Low Maintenance: Requires minimal maintenance due to its robust construction and high-quality finish.
4. Longevity: Backed by a 30-year warranty and a 60-year life expectancy.
5. Versatility: Available in a wide range of RAL colours, with custom colours available upon request.
We are committed to providing complete balcony component solutions that not only meet but exceed industry standards.
Stay tuned for further updates as we continue to innovate and lead in the development of high-quality balcony, terrace, and walkway solutions compliant with BS 8579:2020.
For more information about our modular balustrades and aluminium balcony solutions, please contact us on 01622 534 044 or email us at info@alideck.co.uk.
