Concrete-Fix 0.74kN Option Specification

The AliRail Vertical Infill Concrete Fix 0.74kN Option is load tested in accordance with BS 6180:2011 (0.74kN/m horizontal line load, 0.5kN infill point load, 1.0kN/m2 infill distributed load).

AliRail Concrete-Fix 0.74kN Option
AliRail Concrete-Fix 0.74kN Option
AliRail Concrete-Fix 0.74kN Option
AliRail Concrete-Fix 0.74kN Option
AliRail Concrete-Fix 0.74kN Option
AliRail Concrete-Fix 0.74kN Option

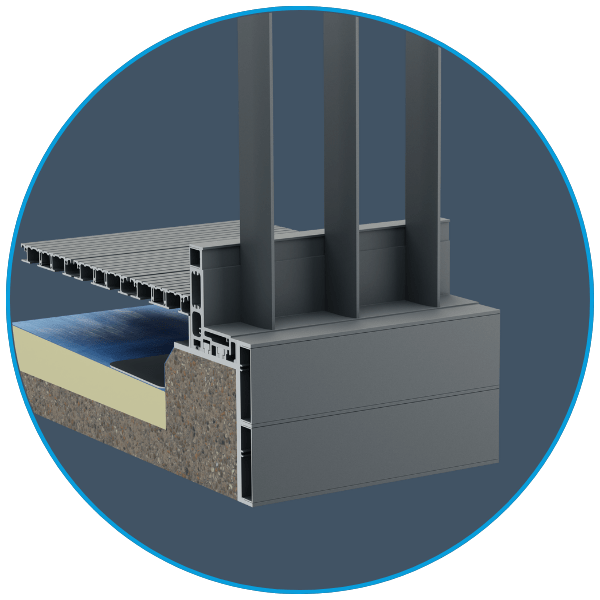

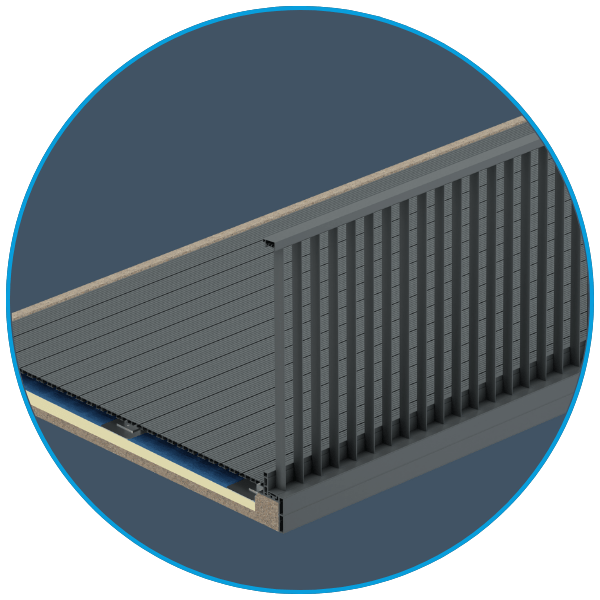

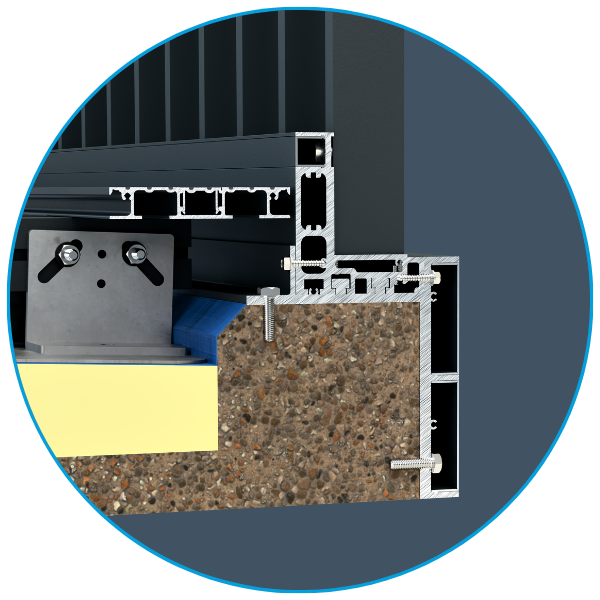

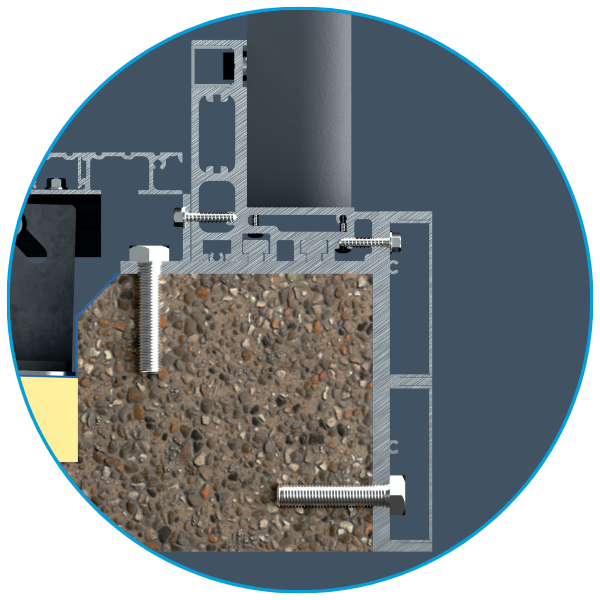

A contemporary balustrade system with aluminium vertical spindle infills, Specifically designed for Concrete Balconies available in our standard RAL Colours and with LED lighting options.

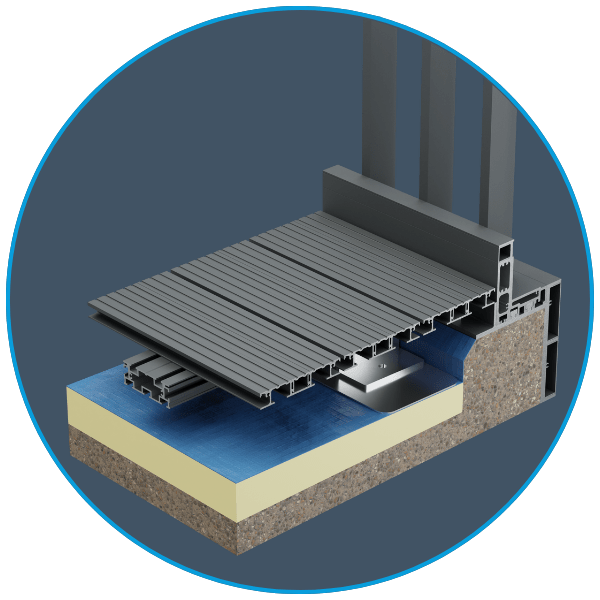

Compatible with all AliDeck Decking, Drainage, and Joist Systems and all AliClad Soffit Cladding Systems. Load tested in accordance with BS 6180:2011 (0.74kN/m horizontal line load, 0.5kN infill point load, 1.0kN/m2 infill distributed load).

Two Handrail Options To Choose From

Standard Handrail

Slimline Handrail

Four Modern Spindle Profiles To Choose From

Concrete Fix Balconies & Balustrades | Durable & Secure Installation Solutions

Concrete Fix 0.74kN Datasheet & CAD Drawings

Concrete Fix Option Specification

  • Fire Resistance Rating: A2-s1, d0

  • Loading Performance:

    • Horizontal line load: 0.74kN/m
    • Infill point load: 0.5kN/m
    • Infill distributed load: 1.0kN/m²

  • Coating Properties:

    • Thickness: 60-80 microns
    • Full color range available
  • Testing Standards:

    • Impact resistance: 2.5kN energy test (EN ISO 6272/ASTM D2794)
    • Bend adhesion: 5mm mandrel test (EN ISO 1519)
    • Corrosion resistance: Machu Test (48hrs at 37°C)
    • Adhesion: Qualicoat 2.4.1 cross-hatch test (EN ISO 2409)
    • Cutting integrity: Qualicoat 2.18 sawing/drilling test
    • Additional durability testing: Acid salt spray (ISO 9227), humid atmosphere resistance (EN ISO 3231), accelerated and natural weathering, mortar resistance, and condensation water testing

Please note: Test result data is indicative only. Loading performance and ensuring the AliRail system integrates with specific balcony designs is the responsibility of the balcony designer. AliDeck has not performed any project-specific calculations, so the designer’s calculations must account for all relevant components.
