Top-Fix PFC 0.74kN & 1.5kN Option Specification
The AliRail Vertical Infill Top-Fix PFC 0.74kN & 1.5kN Option is load tested in accordance with BS 6180:2011 (0.74kN/m & 1.5kN/m horizontal line load, 0.5kN infill point load, 1.0kN/m2 infill distributed load).

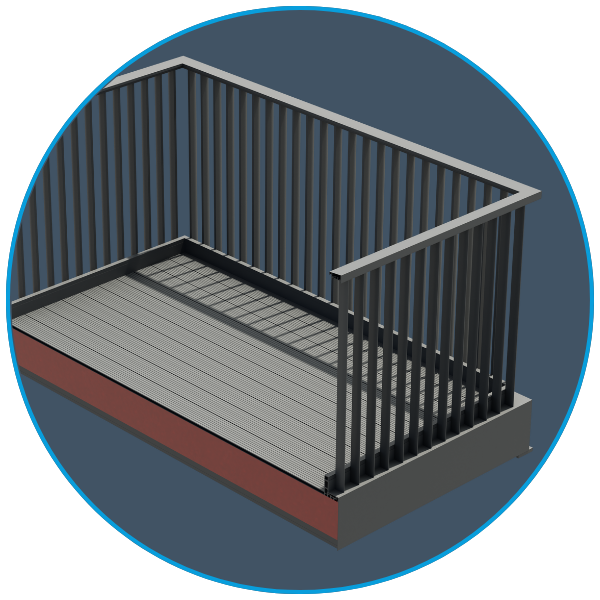

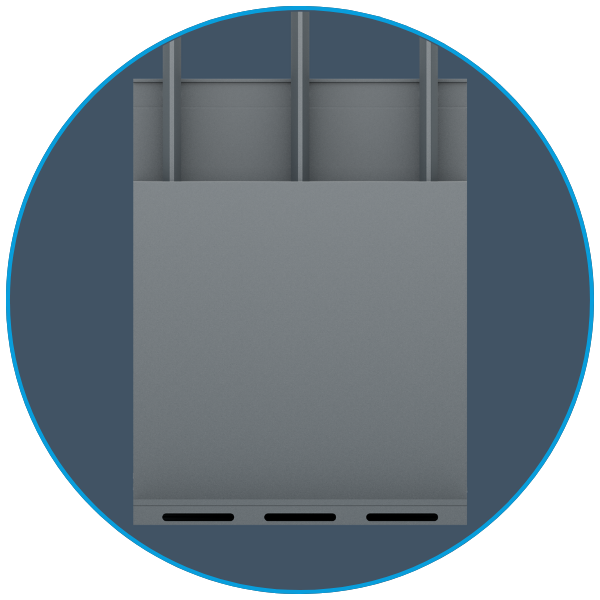

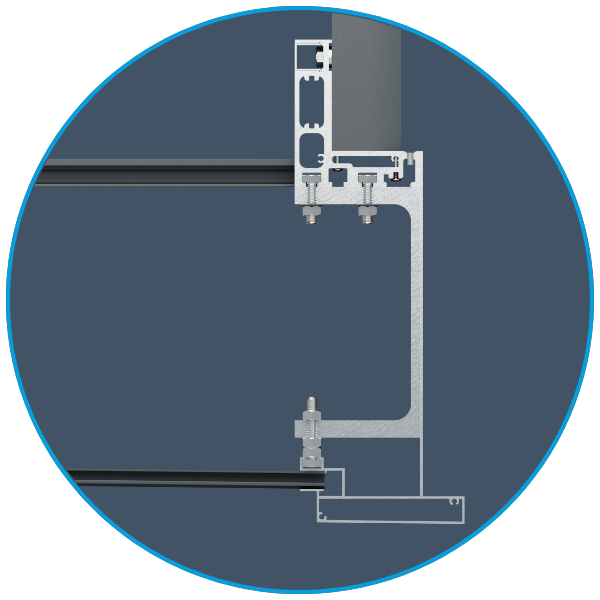

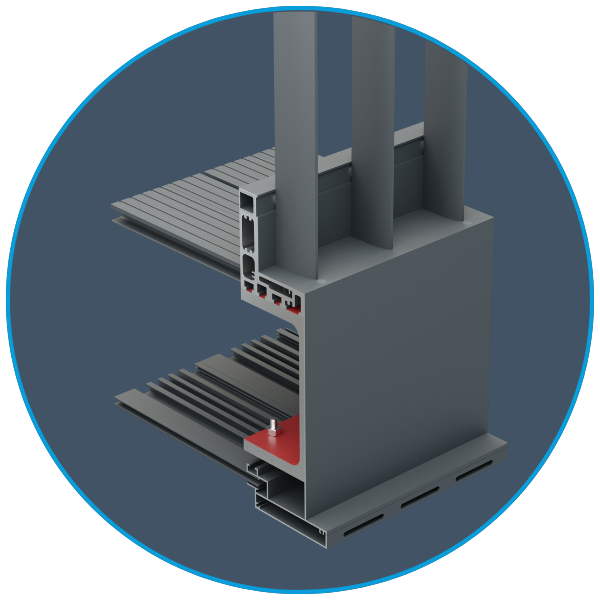

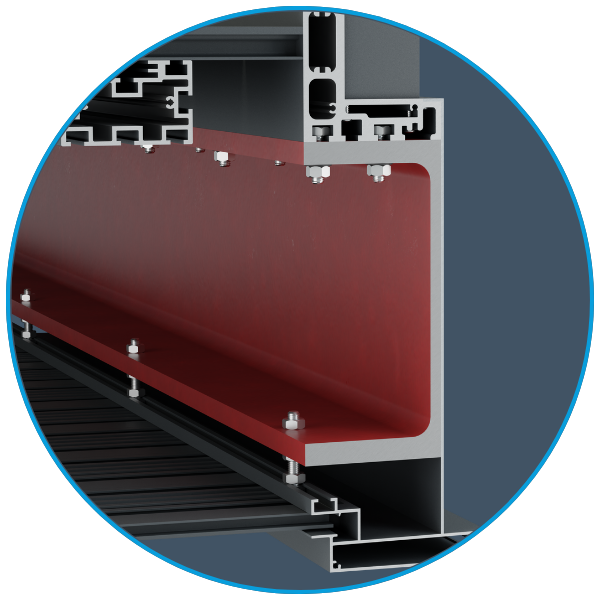

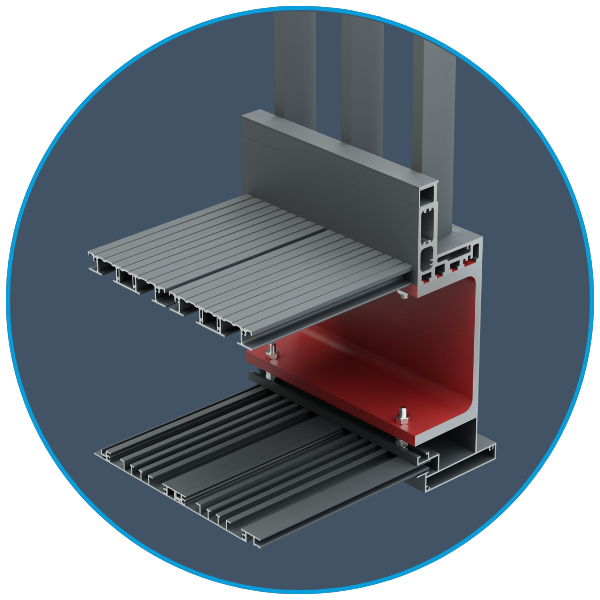

A contemporary balustrade system with aluminium vertical spindle infills, Specifically designed for the top fix onto PFC (toes in or out) or box section, available in our standard RAL Colours.
Compatible with all AliDeck Decking, AliDrain Drainage, and Joist Systems and all AliClad Soffit Cladding Systems.
Two Handrail Options To Choose From
Slimline Handrail

Four Modern Spindle Profiles To Choose From

Top-Fix PFC 0.74kN & 1.5kN Option Specification
Please note: Test result data is indicative only. Loading performance and ensuring the AliRail system integrates with specific balcony designs is the responsibility of the balcony designer. AliDeck has not performed any project-specific calculations, so the designer’s calculations must account for all relevant components.
