Vertical Infill Balustrade: FAQ, Gallery & News2024-07-25T10:31:14+01:00

Steel vs aluminium for balcony balustrades, up to 35% cost saving following steel price rises

Due to the ongoing economic and political turbulence in the UK and world-wide, many essential resources in the construction industry have seen rising prices and limited supply. A key material for construction is steel and with prices continuing to rise, many balcony manufacturers are seeking viable alternative solutions for balcony balustrades and for remediation decking projects. In this context, aluminium has been increasingly recognised as going a long way to overcoming these challenges.

Technical Update! AliRail Juliet and AliRail Vertical Infill Spindle Balustrade Systems subjected to new deflection and load testing, excellent results received for full compliance with regulations

Innovative product solutions for construction that utilise aluminium in favour of more traditional metals are in high demand. Our AliDeck aluminium balustrade kit is one such innovation that is putting money back in the pockets of balcony manufacturers. With our aluminium balustrades proving to save in excess of £100 per linear metre when used alongside our soffit-cladding and balcony decking, we have recently seen new enquiries sky-rocket!

Alongside the excellent cost savings, an essential consideration to be kept in mind by architects, specifiers and balcony manufacturers when working with a balcony balustrade system is weight. Aluminium is an extremely strong and robust material but also lightweight, offering 50% or more weight saving in comparison to steel on a typical balcony.

AliRail Vertical Infill Spindle System Keyshot

The AliDeck aluminium balustrade kit is highly sustainable using up to 67% recycled aluminium. Our range of aluminium decking and balcony components come with a 60-year life expectancy and 30-year manufacturer guarantee, offering our customers true peace of mind.

We dispatch the balustrade elevations in prefabricated kits, meaning installation is quick and simple and therefore offering further opportunities for savings on time and labour. We recently visited a project where the AliDeck aluminium balustrade kit was specified to the building façade and you can see the excellent aesthetic outcome taking shape.

Contemporary AliRail Balustrade Project

Steel fabricators depend on their suppliers to ensure a successful project outcome on time, within budget. That’s why AliDeck are pleased to be leading the way with our cost-effective and futureproof designs. AliDeck’s excellent service delivery and high-quality product design allows us to build trusted relationships with our partners.

If you would like to discuss our cost-saving balustrade kit or the AliRail range in more detail, please contact our technical support team on 01622 235 672 or email us at info@alideck.co.uk.

  • We support Steel Fabricators, Balcony Manufacturers, Architects, Specifiers, Developers, Contractors, Housing Associations & Local Authorities, to ensure Balcony projects success, every time!

  • We’ll work in partnership with you to achieve compliant balcony specification, cost-effective solutions and efficiency.

Vertical Infill Balustrade Manufacturing & Delivery

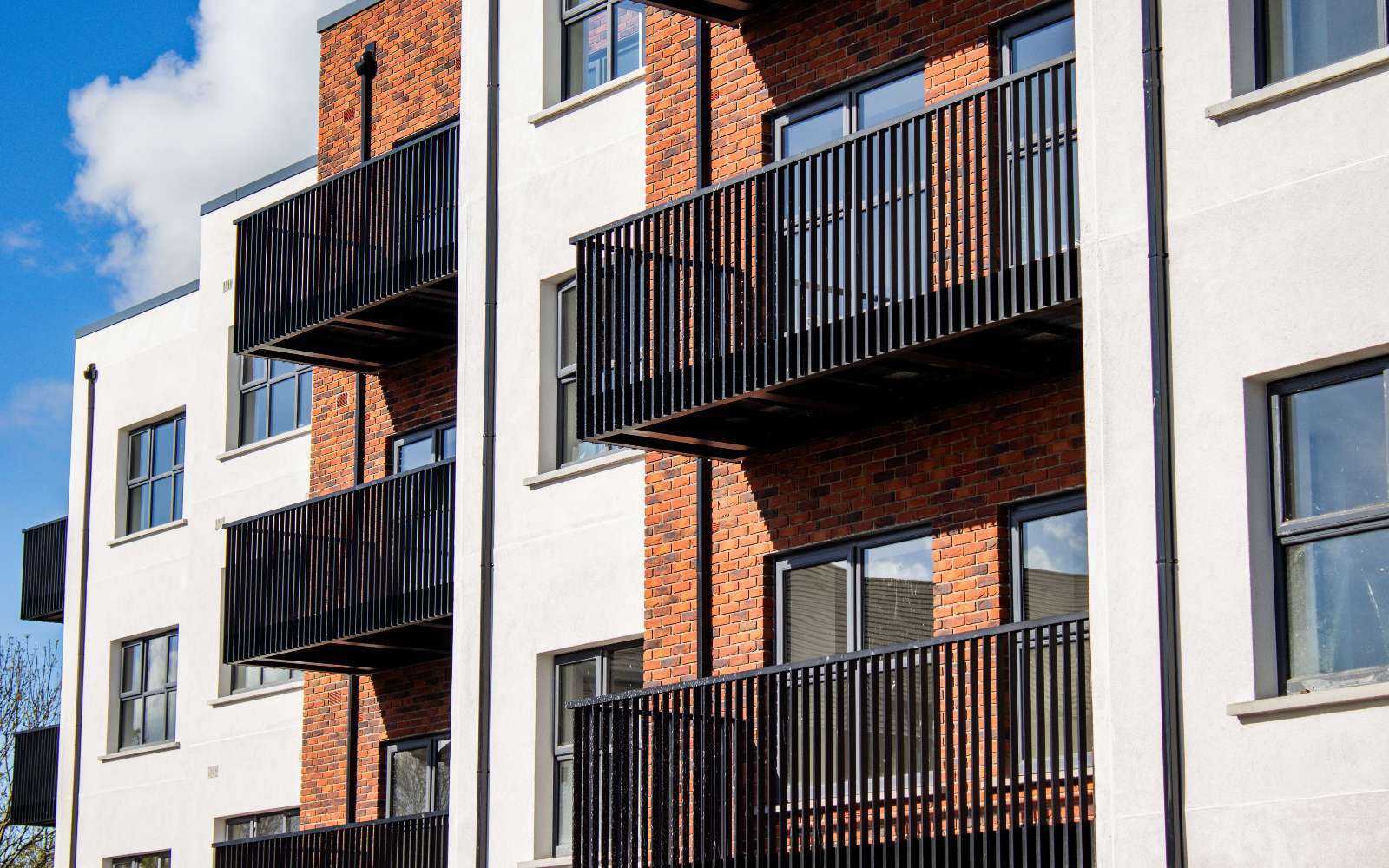

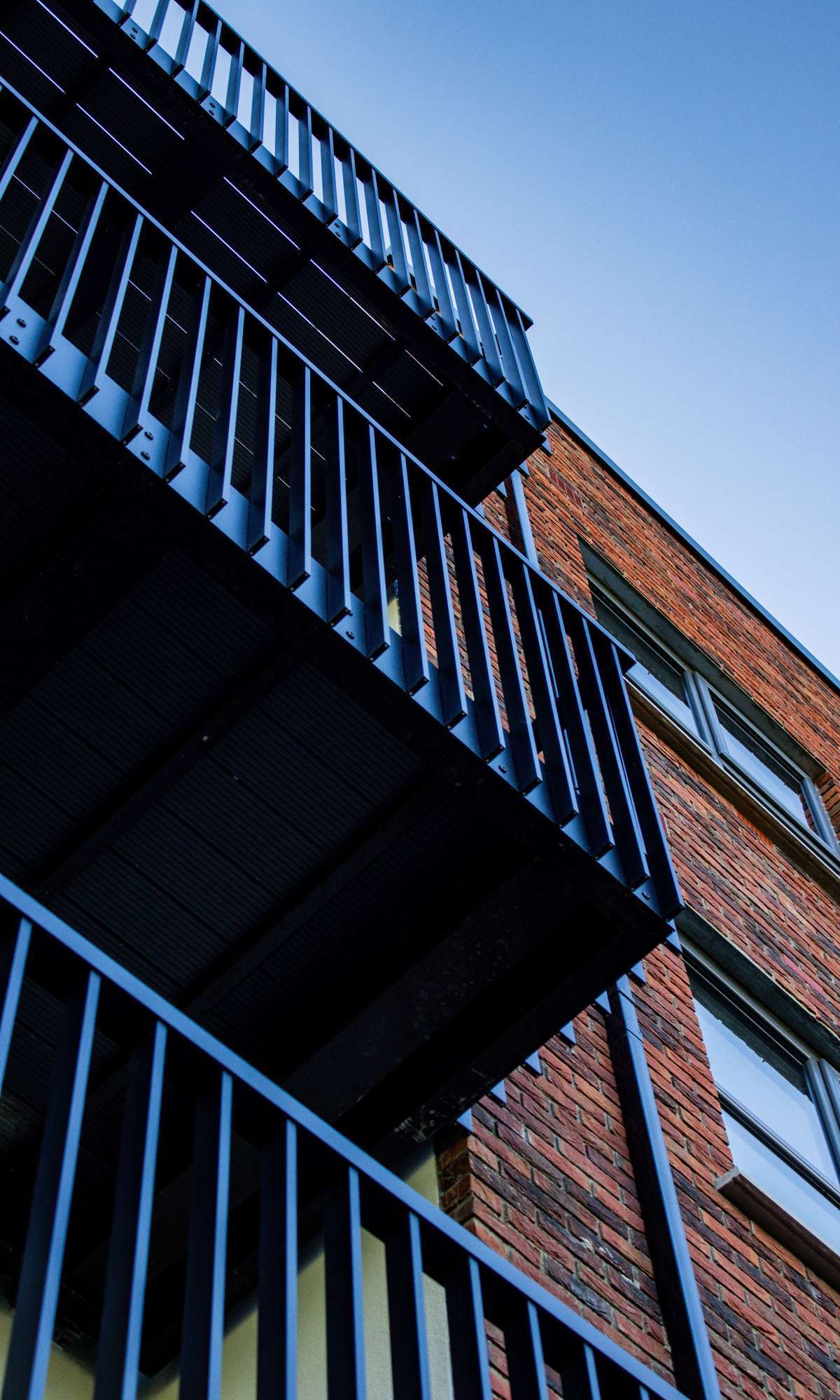

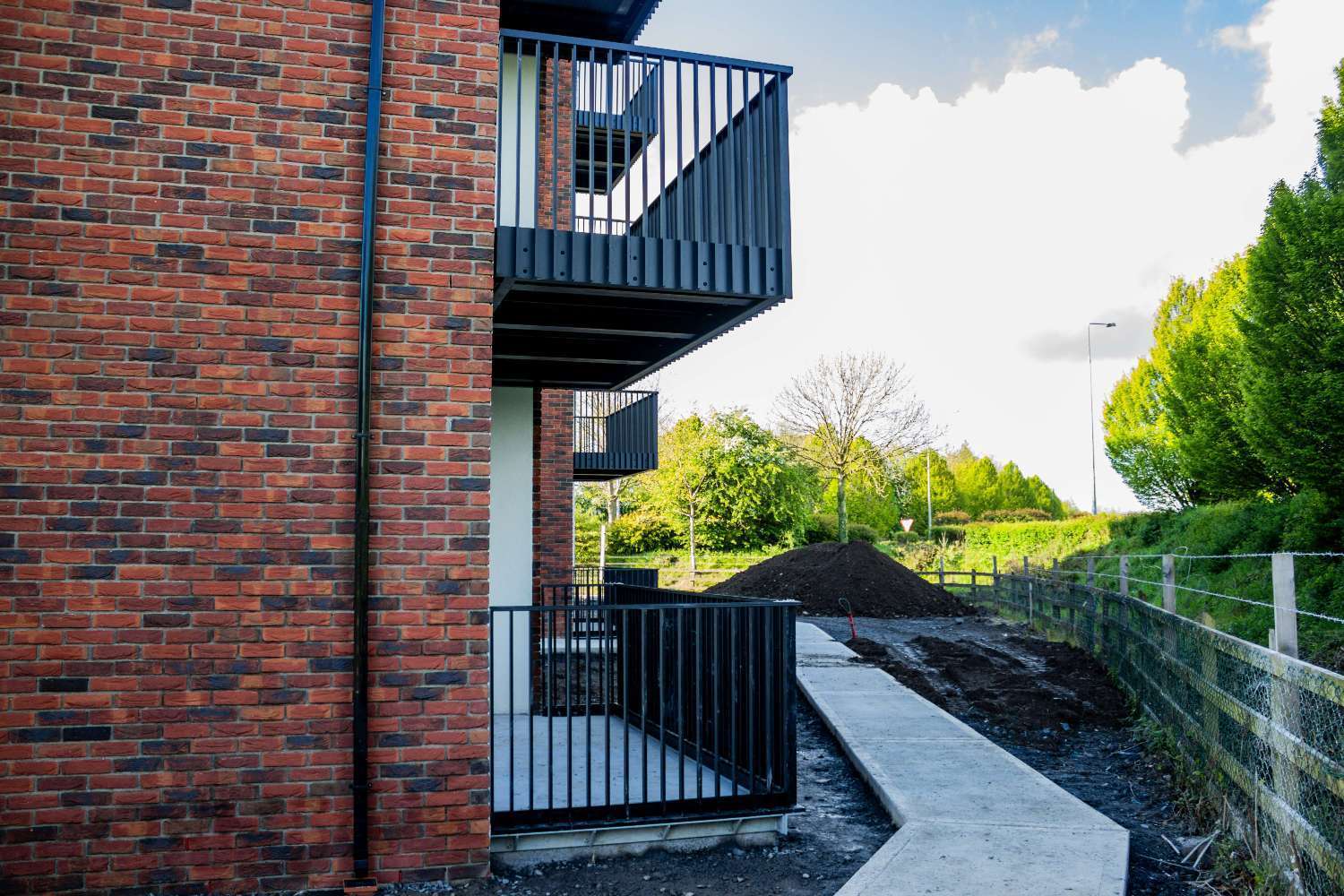

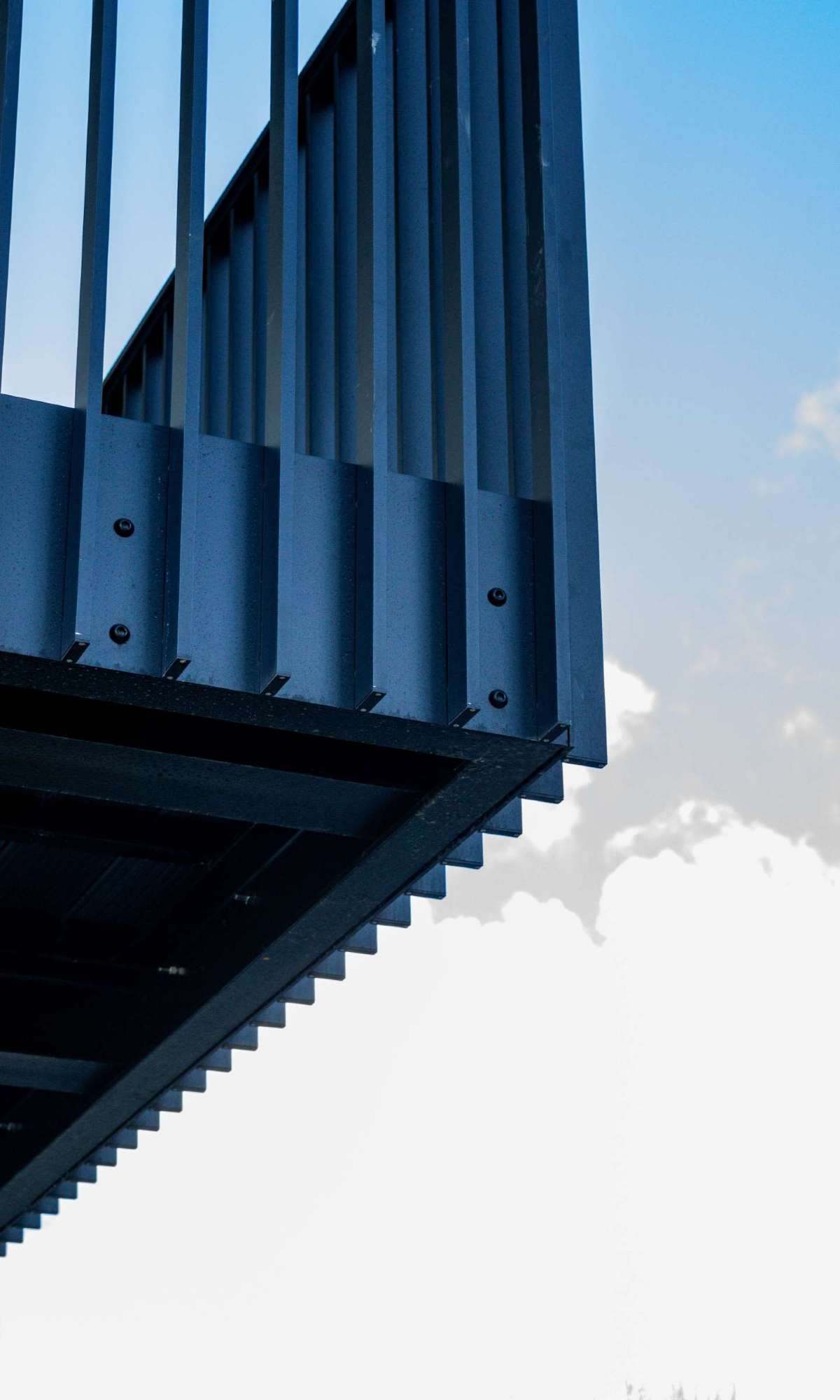

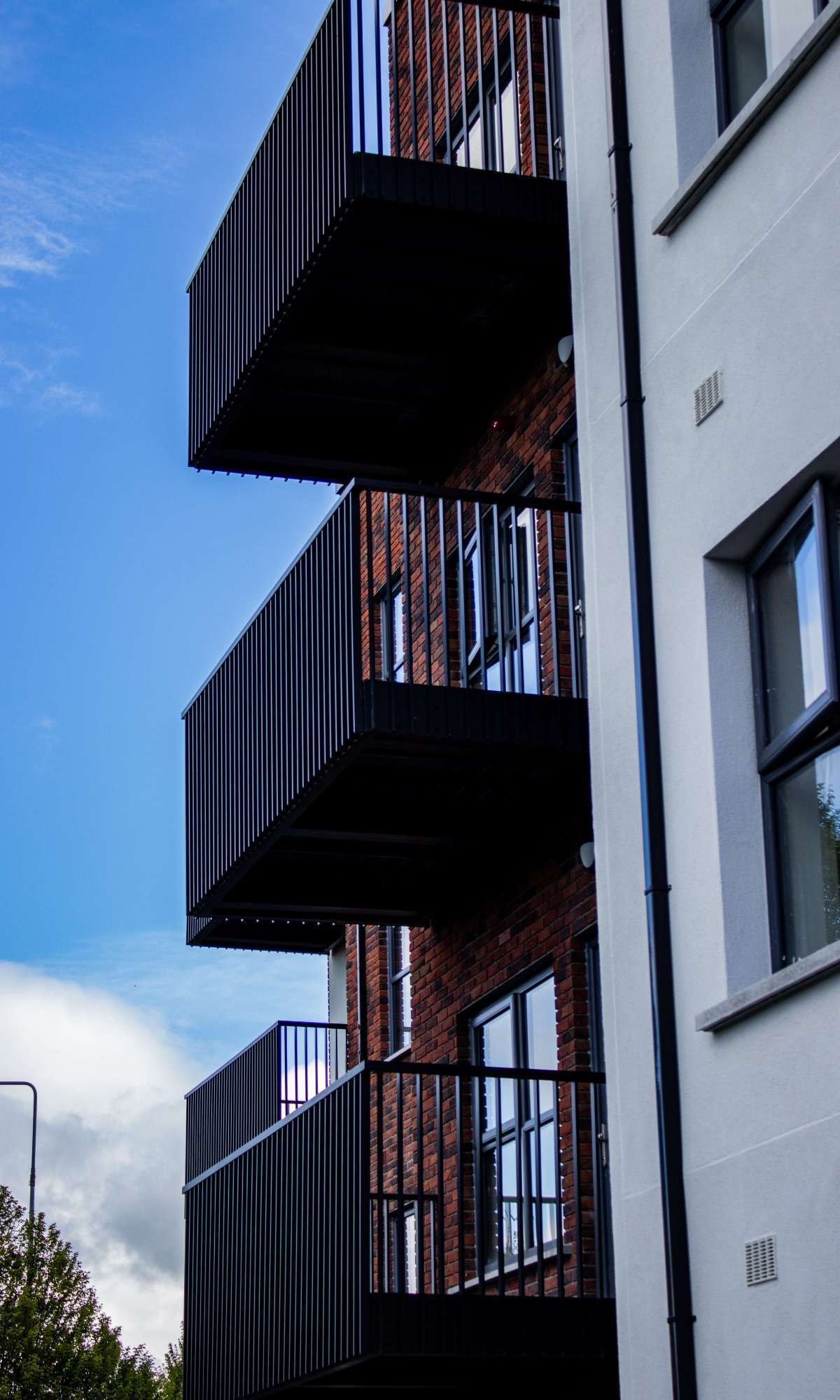

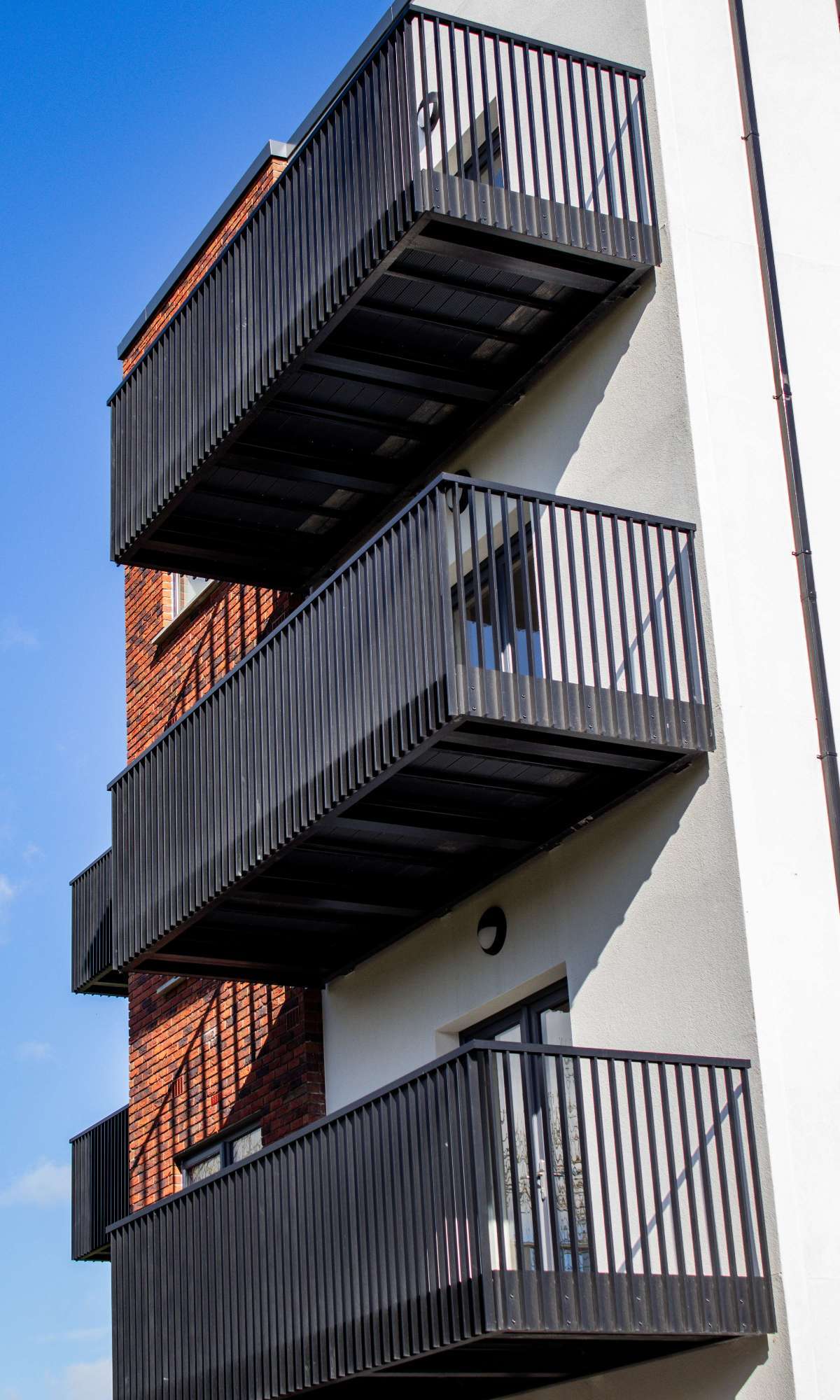

Recent Project: AliRail Vertical Infill Balcony Kit

AliRail Vertical Infill Balustrade FAQ

Do you have balustrade technical datasheets and specification downloads?2022-10-17T17:04:55+01:00

Yes, we have technical downloads for all of our systems.

Click the links below to find the datasheets and specification downloads for the AliRail Vertical Infill balustrade system:



Do you have an installation guide for the AliRail system?2022-10-17T17:04:48+01:00

We do, you can find an in-depth video at the link below:

What fixing options are available for your Vertical Infill Balustrade system?2022-10-17T04:45:55+01:00

AliRail Vertical Infill Balustrade has 2 fixing options, Top-Fix and Plate-Fix, which you can view at the links below:

Do you have a gallery of Balustrade systems?2022-10-17T05:16:58+01:00

You can, we have a range of imagery available from the design renders all the way through production and finally to completed installations available at the link below:

What testing has AliRail been through?2022-10-17T15:39:48+01:00

You’ll find an in-depth coverage of all our AliRail testing results available at the link below:

General AliRail Balustrade System FAQ

Do you have balustrade technical datasheets and specification downloads?2022-10-17T17:04:55+01:00

Yes, we have technical downloads for all of our systems.

Click the links below to find the datasheets and specification downloads for the AliRail Vertical Infill balustrade system:



Do you have an installation guide for the AliRail system?2022-10-17T17:04:48+01:00

We do, you can find an in-depth video at the link below:

What fixing options are available for your Vertical Infill Balustrade system?2022-10-17T04:45:55+01:00

AliRail Vertical Infill Balustrade has 2 fixing options, Top-Fix and Plate-Fix, which you can view at the links below:

Do you have a gallery of Balustrade systems?2022-10-17T05:16:58+01:00

You can, we have a range of imagery available from the design renders all the way through production and finally to completed installations available at the link below:

What testing has AliRail been through?2022-10-17T15:39:48+01:00

You’ll find an in-depth coverage of all our AliRail testing results available at the link below:

What is the AliRail Balcony Balustrade System?2022-10-14T11:35:25+01:00

AliRail is a balustrade system, designed for use on balconies but able to be used on terraces and walkways also. Our AliRail with Vertical Infills option is our neat and versatile solution for a classic balcony balustrade design.

What is supplied with an AliRail Balustrade Kit?2022-10-14T11:01:23+01:00

AliRail is supplied in pre-fabricated elevations plus handrail sections for simple installation. Fixings are also supplied.

Is AliRail part of the Balcony Kit?2022-10-14T11:39:26+01:00

Yes! AliRail is part of all of our balcony kits and can be made to bespoke specifications. Other elements of our Balcony Kit are AliDeck aluminium decking and AliClad soffit cladding.

How is AliRail Delivered?2022-10-14T11:55:37+01:00

AliRail can be delivered in plot-specific, flat-pack kit-form if required or in sorted elevations to suit fabrication.

What is a Balustrade Infill?2022-10-14T11:56:17+01:00

A balustrade infill is whatever fills the space between the handrail and the bottom of the balustrade. Our AliRail vertical infill balustrades have spindle infill, with multiple spindle shape options available.

Can I request a sample?2022-10-14T14:14:41+01:00

Yes, you can request a sample via our Request Form at the link below:

Is AliRail easy to install?2022-10-14T16:34:55+01:00

AliRail with Vertical Infill is easy to install to your steel bolt-on or slide-on balcony, and is fully compatible with the AliDeck and AliClad systems. Supplied in kit form, the pre-fabricated balustrade elevations are simply fixed to the steelwork.

Is AliRail available with any Upgrade options?2022-10-14T16:34:30+01:00

Yes, LED lighting in the handrail is optionally available for a high-end finish and to create an aspirational “balcony living” specification, with a range of light colour options, including RGB.

How long is the warranty on balcony balustrades?2022-10-14T16:55:01+01:00

AliRail is supplied with a 30-year warranty against splitting, cracking, warping, splintering, rotting, twisting and material or manufacturing defects and has a minimum 60-year life expectancy.

What colours are available for AliRail Balustrades?2024-07-12T10:01:55+01:00

AliRail with Vertical Infill can be coated in any of our 10 Standard Colours, although any RAL colour of your choosing is available on special request (lead-time may be increased with non-standard colour selection).

Click the link below to view our standard RAL colours:

What are the benefits of using AliRail Balustrades?2022-10-15T10:20:14+01:00

Benefits include but are not limited to:

  • Kit-form, supplied in pre-fabricated elevations
  • Warranty: 30 Years
  • Life Expectancy: 60 years
  • LED Lighting options into the handrail
  • Fire Rating: A2-s1, d0
  • Loading performance up to 1.5kN/m

For more, check out our product benefits section at the link below:

What type of aluminium is AliRail made from?2022-10-17T15:51:04+01:00

AliRail is constructed completely from 100% aluminium (6063 T6 grade), up to 67% of which has been recycled to make this system eco-friendly and much better for the environment.

What maintenance will AliRail require?2022-10-17T16:14:17+01:00

AliRail is aluminium and finished using the 5 stage Qualicoat system, therefore little-to-no maintenance is required other than cleaning with a warm, damp and scratch free cloth.

Weight per balustrade system per linear metre?2022-10-17T16:33:00+01:00

The approximate weight per linear metre of AliRail is 16kg. This may vary slightly according to design specification and installation options.

What British Standard is AliRail tested to, for loading performance?2022-10-17T16:35:59+01:00

All AliRail products have been independently tested for loading performance to BS 6180: 2011, Barriers In and About Buildings

What height is the integral toe board of the AliRail balustrade set at?2022-10-17T16:48:03+01:00

To comply with Approved Document K, we ensure that the toe board height is equivalent to half of the gap between spindles.

What is the maximum gap between Spindles and aluminium balustrade?2022-10-17T16:53:03+01:00

In line with Approved Document K, the maximum gap between spindles is set at less than 100mm.

Is AliRail right for my project?2022-10-17T16:54:22+01:00

AliRail is perfect for new build construction projects, due to production efficiencies, we have found that AliRail is most suited to medium and large-scale projects

Do you have balustrade technical datasheets and specification downloads?2022-10-17T17:04:55+01:00

Yes, we have technical downloads for all of our systems.

Click the links below to find the datasheets and specification downloads for the AliRail Vertical Infill balustrade system:



Do you have an installation guide for the AliRail system?2022-10-17T17:04:48+01:00

We do, you can find an in-depth video at the link below:

What fixing options are available for your Vertical Infill Balustrade system?2022-10-17T04:45:55+01:00

AliRail Vertical Infill Balustrade has 2 fixing options, Top-Fix and Plate-Fix, which you can view at the links below:

Do you have a gallery of Balustrade systems?2022-10-17T05:16:58+01:00

You can, we have a range of imagery available from the design renders all the way through production and finally to completed installations available at the link below:

What testing has AliRail been through?2022-10-17T15:39:48+01:00

You’ll find an in-depth coverage of all our AliRail testing results available at the link below:
