AliDeck Non-combustible Micro Joist for AliDeck Aluminium Decking System
The AliDeck aluminium decking system is a complete solution for all deck projects, on balconies, terraces, and walkways. Consisting of a range of decking boards, joists, and pedestals, the System’s inter-compatibility provides remarkable versatility and a solution for all requirements.
Our Micro Joist is our cost-effective, ultra-low-profile support bearer, specifically designed for installations that require the lowest build-up. With a 20mm profile height, the Micro Joist provides great versatility for projects with limited build-up heights, while allowing a maximum recommended span of 300mm. The Micro Joist is light-weight, cost-effective, and ideal for tricky projects.
300mm
Maximum Span
20mm
Joist Depth
50mm
Joist Width
0.719KG/lm
Joist Weight
6,000mm
Stock Length
30 Years
Product Warranty
60 Years
Expected Lifespan
67%
Recycled Content
All Aluminium
Heat Resistant
Durable Finish
Low Maintenance
Recyclable
Weather Stable
Colour Matched
A2 Fire Rated
Micro Joist Bracket Fixing Examples

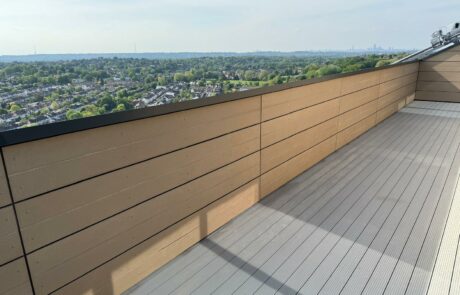

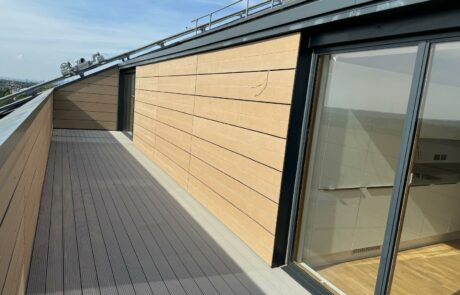

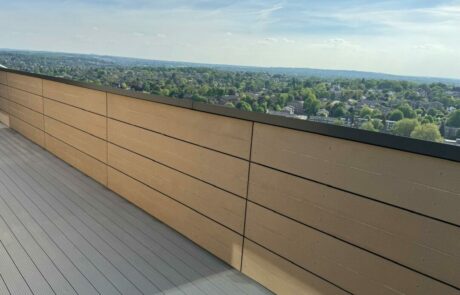

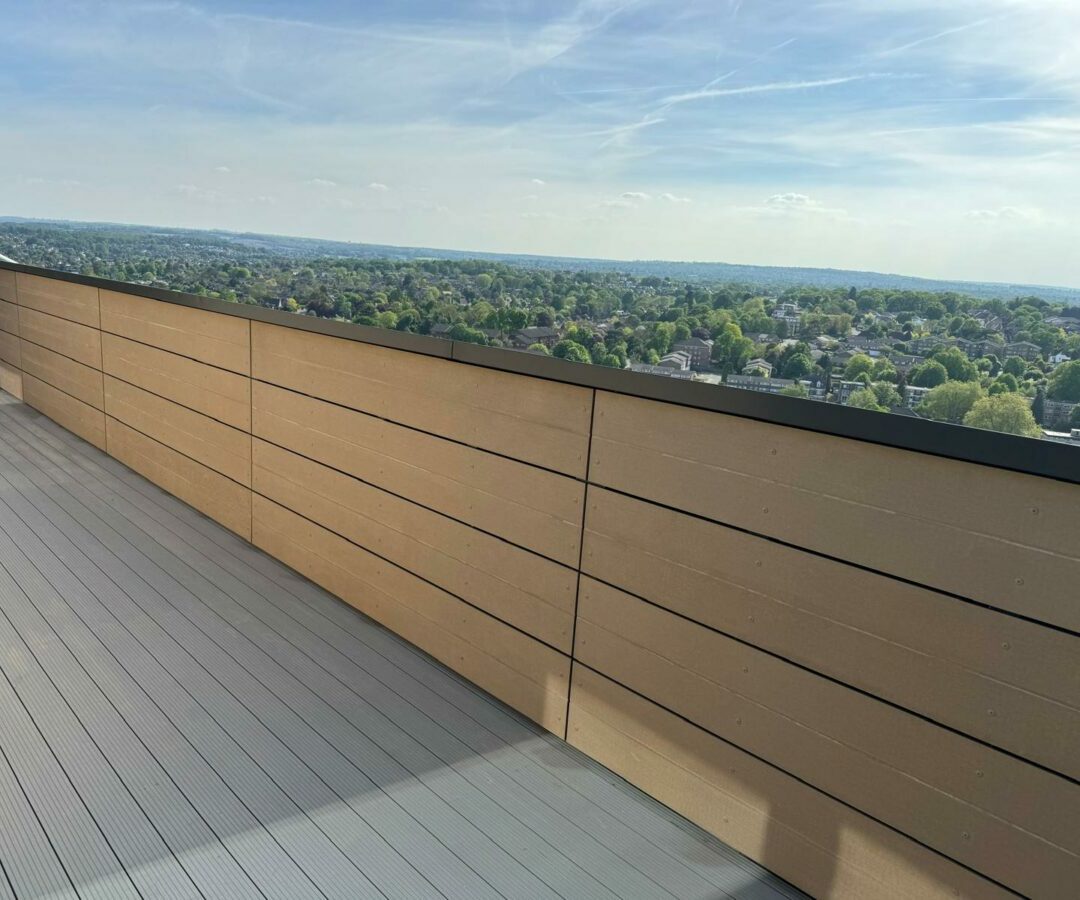

Micro Joist Gallery
AliDeck Micro Joist in NBS Source
Standard Colours
Sand
Non-RAL
Silver Grey
Non-RAL
Clay Brown
RAL 8003
Anthracite Grey
RAL 7016
Quartz Grey
RAL 7039
Grey Beige
RAL 1019
Sepia Brown
RAL 8014
Stone Grey
RAL 7030
Beige Grey
RAL 7006
Jet Black
RAL 9005
Non-combustible aluminium joist solution for balcony, terrace and walkway decks with the AliDeck System
Installation
Speed and ease of installation is essential to the success of your balcony project. The AliDeck Micro Joist has been designed to integrate seamlessly with the AliDeck System and the bolt channels allow for quick installation times.
Safety
The AliDeck Micro Joist is A2-s1, d0 fire-rated when coated (A1 when mill finish) and is fully-compliant with all applicable legislation.
Systemisation
The AliDeck Micro Joist is custom engineered for compatibility with the entire range of AliDeck aluminium deck boards.
Construction
All AliDeck Joists are constructed from 100% aluminium (6063 T6 grade), up to 67% of which has been recycled to make these products eco-friendly.
Maintenance
Provided in mill-finish or powder-coated, zero maintenance beyond simple cleaning is required.
Warranty
The AliDeck System is supplied with a 30 year warranty against splitting, cracking, warping, splintering, rotting, twisting and material or manufacturing defects. It has a minimum 60 year life expectancy.
