SENIOR DECKING BOARDS

with Low Joists and Adjustable Pedestal Brackets

A comprehensive non-combustible deck system, comprising; 1200mm span senior decking board, 1200mm span low joists, and a build-up height of 80mm to 330mm, using adjustable pedestal brackets.

System 1 Datasheet

System Benefits:

  • Excellent Fire Performance

  • Drainage Compatible

  • Low Slip Potential

  • Fast Installation

  • Highly Aesthetic

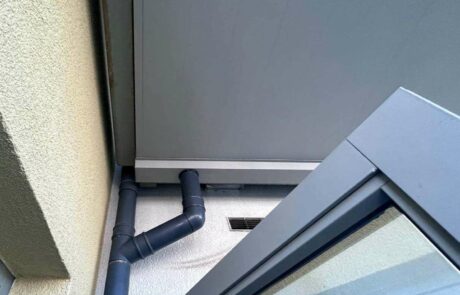

Drainage systems available

In order to satisfy your warranty and insurance providers drainage requirements for balconies, terraces, and walkways, contact us today for project specific calculations..

  • This video demonstrates the hassle-free installation for System 1, comprised of our Senior Balcony Boards, Low Joists, and Adjustable Pedestal Brackets, onto the waterproof membrane of a concrete balcony, also suitable for steel projecting balconies.

There are 3 core components of System 1: Senior Decking Board, Low Joist & Adjustable Pedestal Brackets (see below).

Senior Decking Board

AliDeck Senior Decking Boards are specifically designed for installations on steel or concrete balconies, terrace decks, or walkway areas.

  • Boards can be cut to size along both the length and width.

Individual Boards:

  • Length: 4 & 6 metres

  • Width: 120mm

  • Depth: 30mm

  • Weight: 2.105KG per linear metre

  • Span: Up to 1200mm

Senior Decking Board Benefits Include

  • FIRE RESISTANCE: The boards are manufactured completely from aluminium and are therefore fire resistant and non-combustible to A2-s1, d0 and A2fl-s1 when coated

  • DRAINAGE: They can also be spaced to allow for varying drainage requirements and are compatible with the AliDeck Balcony Drainage System
  • AESTHETICS: Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium
  • INSTALLATION: Speed and ease of installation are key to any project, so we have designed a board that has a unique invisible (structural) top clip system which can be installed from the top down. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank.

  • SLIP RESISTANCE: See table below.

Pendulum Test Values (PTVs) – Low Slip Potential 35+ | Moderate Slip Potential 25-35 | High Slip Potential 0-25

  • Please Note: The test is conducted 8 times, with the first three tests being ‘warm up tests’ the data then starts to be recorded upon the 4th test. The average is taken from the 5 tests and is shown in the column marked MEAN. The directions are; Length, Width & Diagonal. Each direction has a score depending on wet and dry conditions. Direction A is length, direction B is width, and direction C is diagonal. The tests were carried out in accordance with BS7976 part 2. The full test report is available on our downloads page.

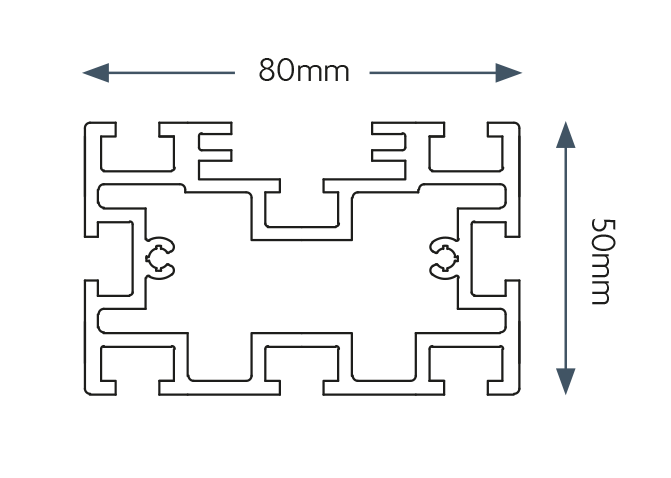

AliDeck Low Joist

The AliDeck Low Joist is our low-profile joist option, designed to act as both a support post and a large-spanning joist. Compatible with all AliDeck decking boards and fully compliant with fire regulations. Specifically designed for use on steel or concrete balconies, terrace deck, or walkway areas that require adjustable heights.

  • Spans max: 1200mm (flat) 1500mm (edge)

  • Fire Rated: A1 (mill finish), A2-s1, d0 & A2fl-s1

  • Weight: 3.11kg per linear metre
  • Coating Thickness: 60-80 Microns

  • Colours: Full Range of AliDeck Colours or Mill Finish

  • Stock Extrusion Length: 6m

  • Warranty: 30 Years

  • Life Expectancy: 60 Years

The Low Joist can span a maximum of 1200mm when laid flat, and 1500mm on edge, between pedestals on a 4kN distributed loading.

AliDeck low joists have been designed to work in conjunction with the AliDeck adjustable pedestals and the rest of the AliDeck board range.

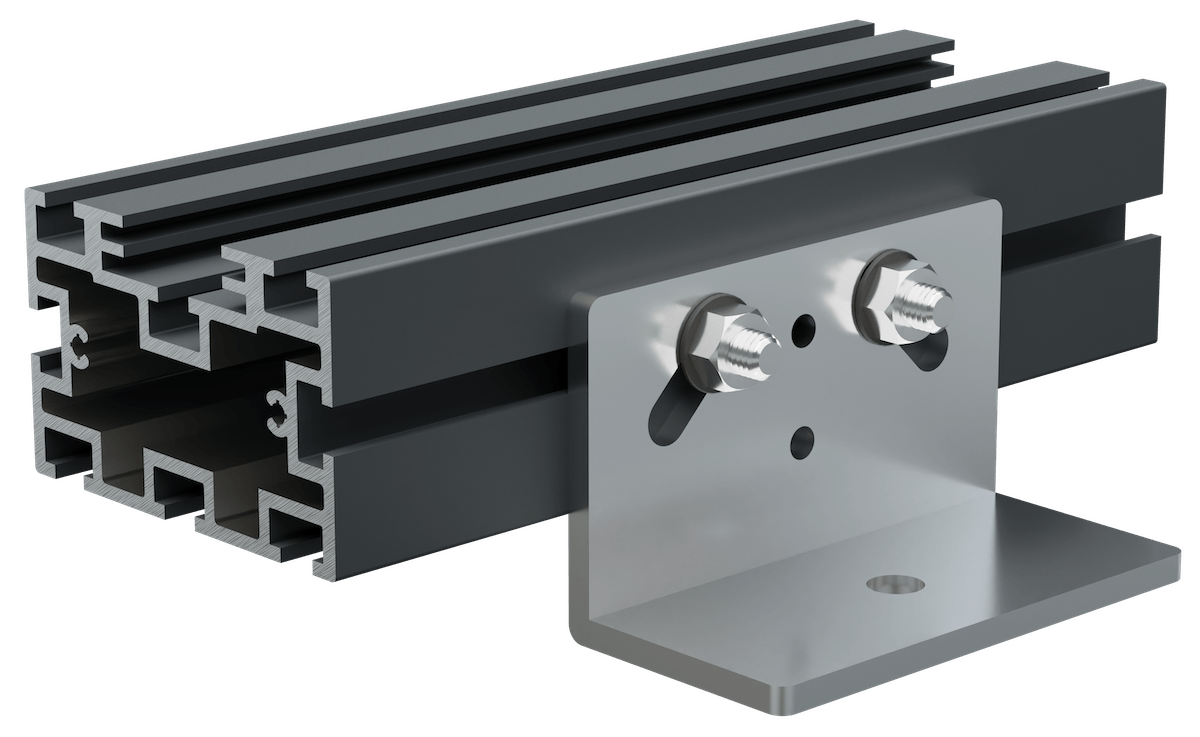

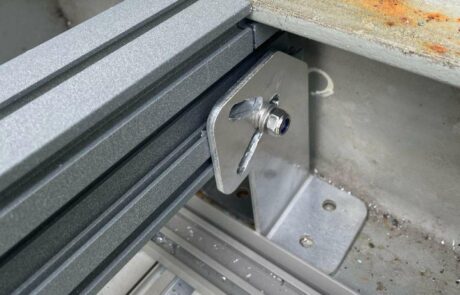

Adjustable Pedestal Brackets

Low Profile Adjustable Brackets are a solution driven product, specifically designed for installations where a low threshold is required but can be used for build-up heights from 50- 300mm. This Al fire rated product is cost effective and quick to install. It works seamlessly with all of our Joists. Contact us for standard sizes.

  • click images above to view larger

AliDeck System 1 in NBS Source

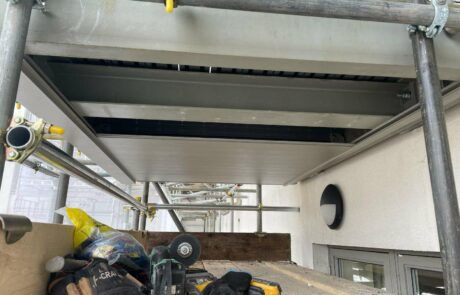

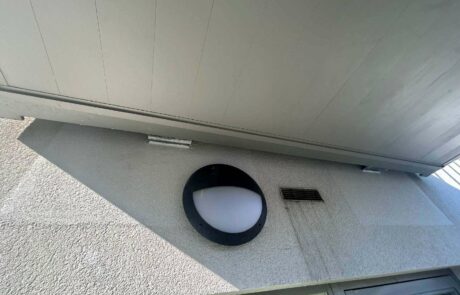

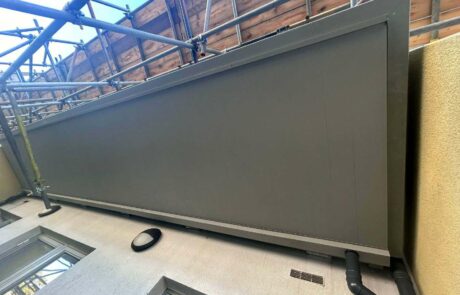

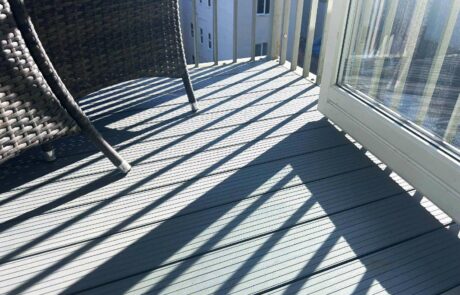

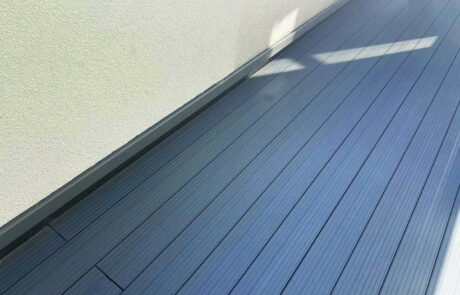

System 1 Gallery
