ULTRA DECKING BOARD

with Eco 50 Joist and Junior Access Gutter

A comprehensive non-combustible deck system, comprising; aluminium decking board, support joist, and drainage solution. This system has a minimum build-up height of 70mm including the decking board and 800mm span between centre of joist.

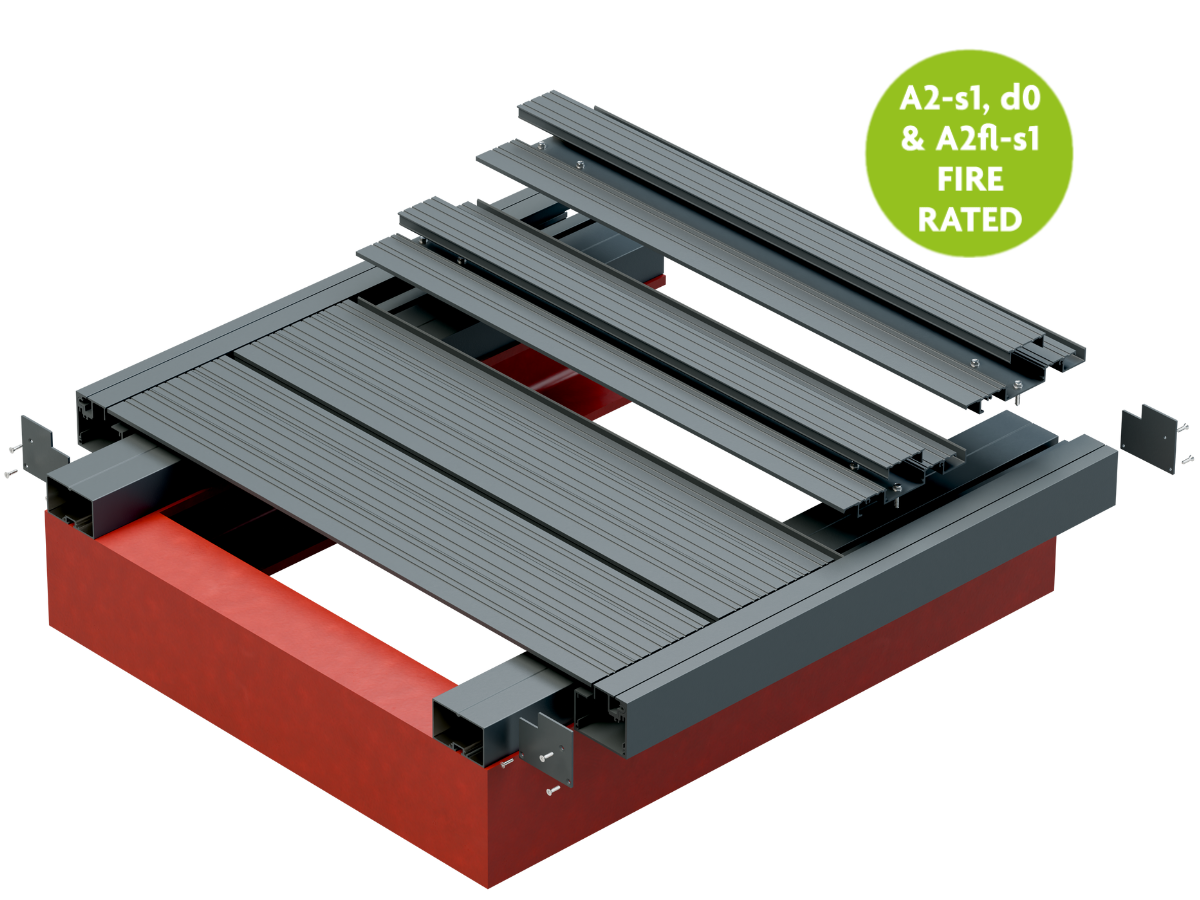

AliDeck-System-10-Steel-Subframe-Fire-Rated

System 10 Datasheet

↓ Click Button to Download
Datasheet

System Benefits:

Excellent Fire Performance
Drainage Compatible
Low Slip Potential
Fast Installation
Highly Aesthetic

Drainage systems available

In order to satisfy your warranty and insurance providers drainage requirements for balconies, terraces, and walkways, contact us today for project specific calculations..

This video demonstrates the hassle-free installation for System 10

Core components of System 10: Ultra Decking Board, Eco 50 Joist & Junior Access Gutter

Ultra Decking Board

AliDeck Ultra Decking Boards are specifically designed for installations on steel or concrete balconies, terrace decks, or walkway areas.

Boards can be cut to size along both the length and width.

Individual Boards:

Length: 4 & 6 metres
Width: 175mm
Depth: 20mm
Weight: 1.912KG per linear metre
Span: Up to 800mm on a 2kN point load

Ultra Decking Board Benefits Include

FIRE RESISTANCE: The boards are manufactured completely from aluminium and are therefore fire resistant and non-combustible to A2-s1, d0 and A2fl-s1 when coated
DRAINAGE: They can also be spaced to allow for varying drainage requirements and are compatible with the AliDeck Balcony Drainage System
AESTHETICS: Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium

INSTALLATION: Speed and ease of installation are key to any project, so we have designed a board that has a unique invisible (structural) top clip system which can be installed from the top down. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank.
SLIP RESISTANCE: See table below.

Pendulum Test Values (PTVs) – Low Slip Potential 35+ | Moderate Slip Potential 25-35 | High Slip Potential 0-25

Please Note: The test is conducted 8 times, with the first three tests being ‘warm up tests’ the data then starts to be recorded upon the 4th test. The average is taken from the 5 tests and is shown in the column marked MEAN. The directions are; Length, Width & Diagonal. Each direction has a score depending on wet and dry conditions. Direction A is length, direction B is width, and direction C is diagonal. The tests were carried out in accordance with BS7976 part 2. The full test report is available on our downloads page.

AliDeck Eco 50 Joist

The AliDeck Eco 50 Joist is an integral part of the AliDeck System. This extrusion is designed to act as a support and a joist for the complete range of AliDeck boards for use on steel or concrete balconies, terrace and walkway decking areas that require adjustable heights. This joist works in conjunction with the AliDeck Adjustable Pedestals and the rest of the AliDeck board range.

Spans max: Up to 1000mm
Fire Rated: A1 (mill finish), A2-s1, d0 & A2fl-s1
Weight: 1.576kg per linear metre
Coating Thickness: 60-80 Microns
Colours: Full Range of AliDeck Colours
Stock Extrusion Length: 6m
Warranty: 30 Years
Life Expectancy: 60 Years

The Eco 50 Joist can span a maximum of 1000mm between pedestals on a 4kN distributed loading

Eco 50 joist is our value engineered low-profile support bearer, specifically designed for installations that require extremely low build-up in the most cost effective manor.

Junior Access Gutter

The AliDeck Balcony Drainage System is a complete drainage solution for balconies at the deck-level. Comprising of simple components including gutters and between-board channels, the AliDeck Balcony Drainage System can help to achieve piped drainage for steel balconies and for concrete inset balconies.
