LITE DECKING BOARDS

with Lite Joists and Adjustable Pedestal Brackets

A comprehensive non-combustible deck system, comprising; 600mm span Lite decking board, 800mm span lite joists, and a build-up height of 50mm to 320mm, using adjustable pedestal brackets.

System 5 Datasheet

↓ Click Button to Download
Datasheet

System Benefits:

Excellent Fire Performance
Drainage Compatible
Low Slip Potential
Fast Installation
Highly Aesthetic

Drainage systems available

In order to satisfy your warranty and insurance providers drainage requirements for balconies, terraces, and walkways, contact us today for project specific calculations..

This video demonstrates the hassle-free installation for System 5

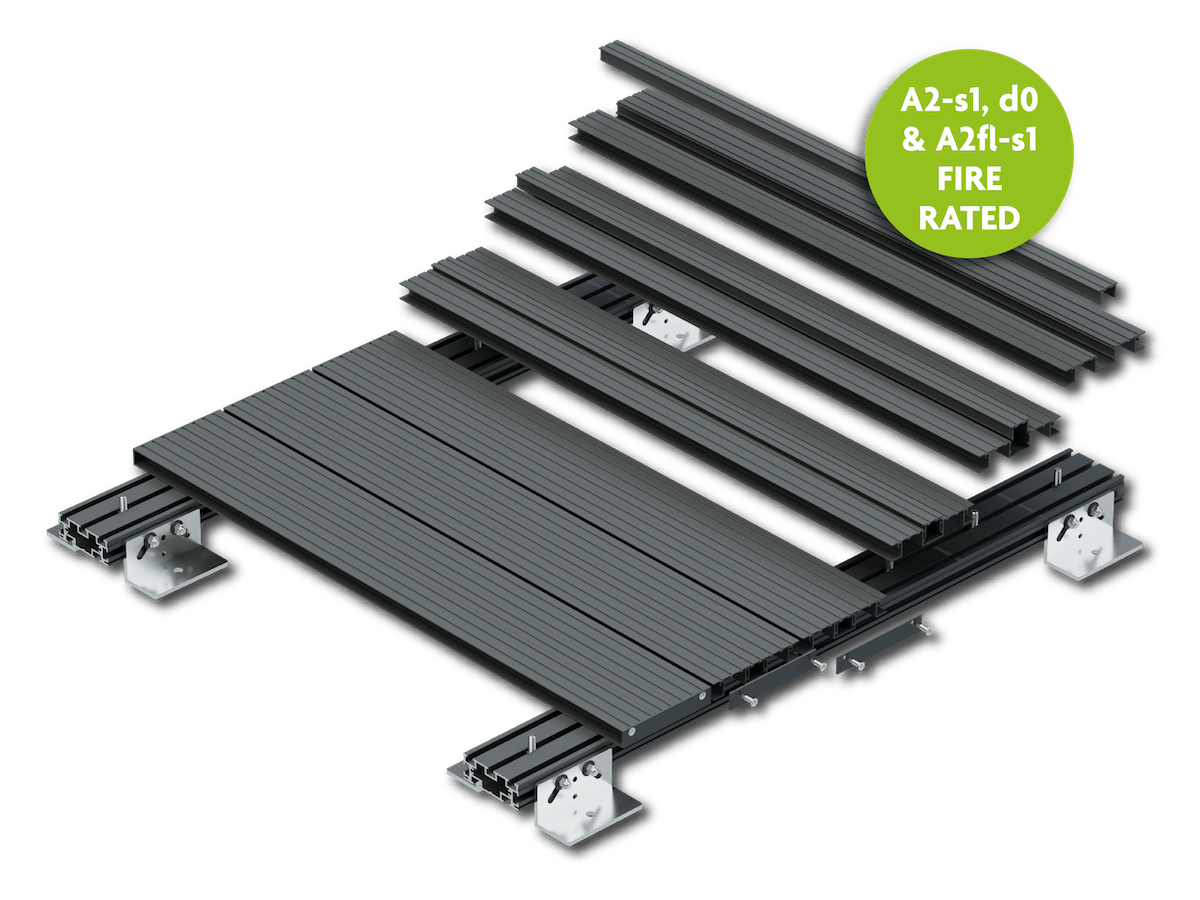

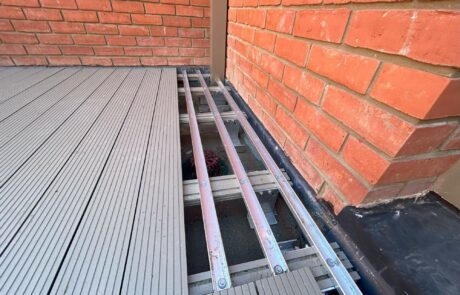

There are 3 core components of System 5: Lite Decking Board, Lite Joist & Adjustable Pedestal Brackets (see below).

Lite Decking Board

AliDeck Lite Decking Boards are specifically designed for installations on steel or concrete balconies, terrace decks, or walkway areas.

Class-2-Balcony-Decking-Lite-Board-V2-Stack-1200

Boards can be cut to size along both the length and width.

Individual Decking Boards:

Length: 4 & 6 metres as standard (custom extruded lengths are also available)
Width: 120mm
Depth: 20mm
Weight: 1.295KG per linear metre
Span: Up to 600mm between supports on a 2kN point load (4kN distributed load)
Max. Decking Area: Unlimited

Lite Decking Board Benefits Include

FIRE RESISTANCE: The boards are manufactured completely from aluminium and are therefore fire resistant and non-combustible to A2-s1, d0 and A2fl-s1 when coated
DRAINAGE: They can also be spaced to allow for varying drainage requirements and are compatible with the AliDeck Balcony Drainage System
AESTHETICS: Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium

INSTALLATION: Speed and ease of installation are key to any project, so we have designed a board that has a simple clip down fixing system. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank
SLIP RESISTANCE: See table below.

Pendulum Test Values (PTVs) – Low Slip Potential 35+ | Moderate Slip Potential 25-35 | High Slip Potential 0-25

Please Note: The test is conducted 8 times, with the first three tests being ‘warm up tests’ the data then starts to be recorded upon the 4th test. The average is taken from the 5 tests and is shown in the column marked MEAN. The directions are; Length, Width & Diagonal. Each direction has a score depending on wet and dry conditions. Direction A is length, direction B is width, and direction C is diagonal. The tests were carried out in accordance with BS7976 part 2. The full test report is available on our downloads page.

AliDeck Lite Joist

The AliDeck Lite Joist is our low-profile, cost-effective joist option, designed specifically for the retrofit and replacement market. Compatible with all AliDeck decking boards and fully compliant with fire regulations. Specifically designed for use on steel or concrete balconies, terrace deck, or walkway areas that require adjustable heights.

Spans max: Up to 800mm
Fire Rated: A1 (mill finish), A2-s1, d0 & A2fl-s1
Weight: 1.926kg per linear metre
Coating Thickness: 60-80 Microns
Colours: Full Range of AliDeck Colours or Mill Finish
Stock Extrusion Length: 6m
Warranty: 30 Years
Life Expectancy: 60 Years

The Lite Joist can span a maximum of 800mm between pedestals on a 1.4kN Loading at L/360 Criteria.

AliDeck lite joists have been designed to work in conjunction with the AliDeck adjustable pedestals and the rest of the AliDeck board range.

Adjustable Pedestal Brackets

Low Profile Adjustable Brackets are a solution driven product, specifically designed for installations where a low threshold is required but can be used for build-up heights from 50- 300mm. This Al fire rated product is cost effective and quick to install. It works seamlessly with all of our Joists. Contact us for standard sizes.
