JUNIOR DECKING BOARD

with Eco 50 Joist and Adjustable Pedestal with Carrier

A comprehensive non-combustible deck system, comprising; 800mm span Junior decking board, 1000mm span Eco 50 Joist, and a build-up height of 106mm to 355mm, using adjustable pedestal brackets with carrier.

System 9 Datasheet

System Benefits:

  • Excellent Fire Performance

  • Drainage Compatible

  • Low Slip Potential

  • Fast Installation

  • Highly Aesthetic

Drainage systems available

In order to satisfy your warranty and insurance providers drainage requirements for balconies, terraces, and walkways, contact us today for project specific calculations..

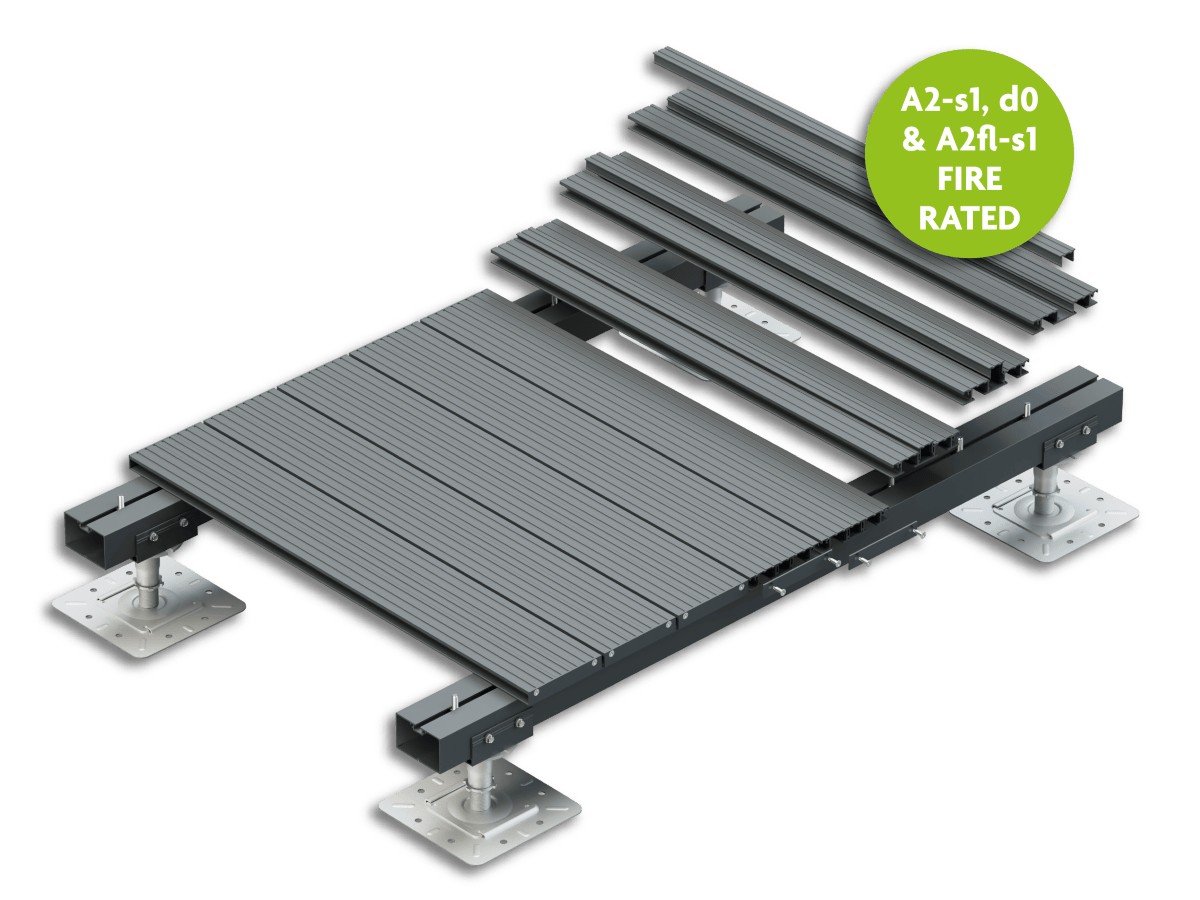

Core components of System 9: Junior Decking Board, Eco 50 Joist & Adjustable Pedestal with Carrier

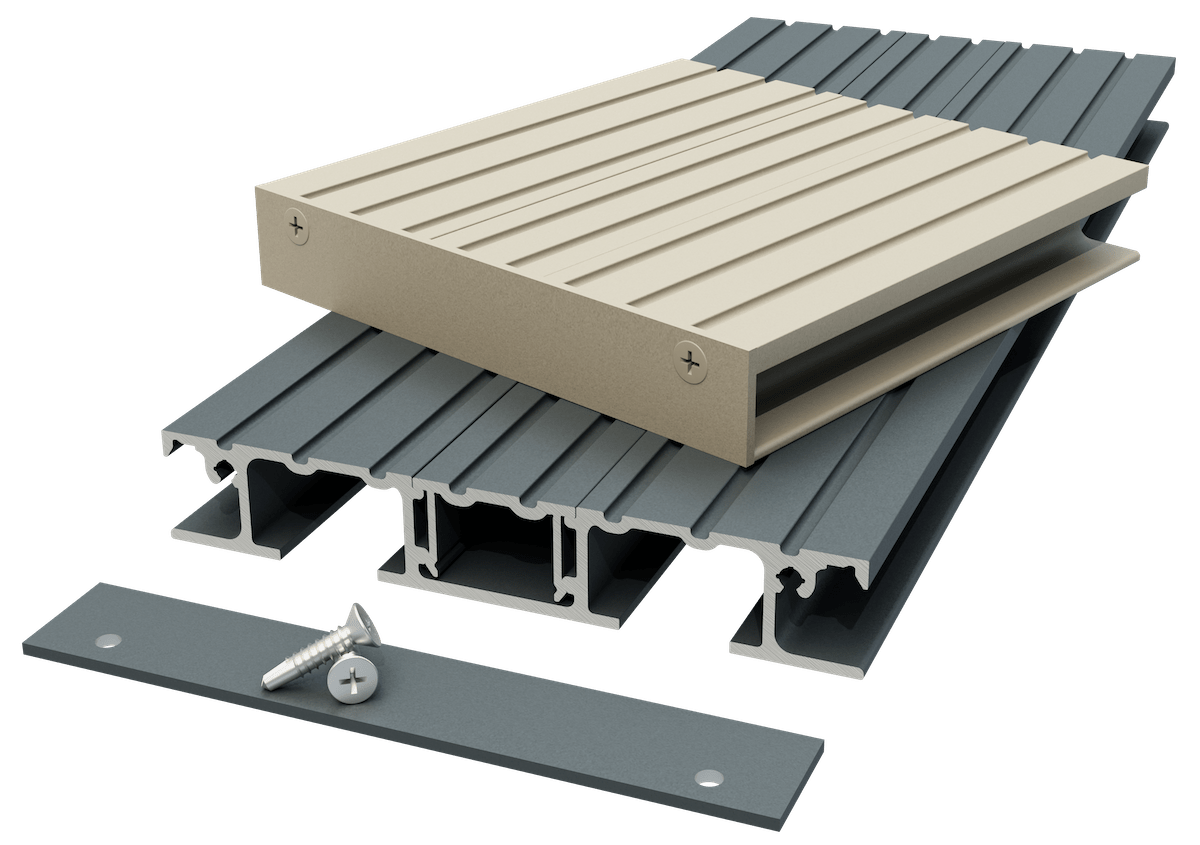

Junior Decking Board

AliDeck Junior Decking Boards are specifically designed for installations on steel or concrete balconies, terrace decks, or walkway areas.

  • Boards can be cut to size along both the length and width.

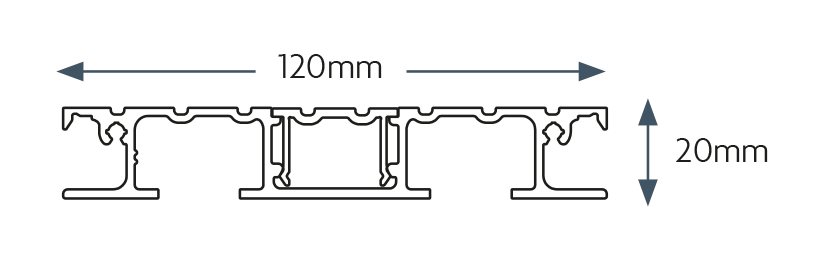

Individual Boards:

  • Length: 4 & 6 metres

  • Width: 120mm

  • Depth: 20mm

  • Weight: 1.58KG per linear metre

  • Span: Up to 800mm

Junior Decking Board Benefits Include

  • FIRE RESISTANCE: The boards are manufactured completely from aluminium and are therefore fire resistant and non-combustible to A2-s1, d0 and A2fl-s1 when coated

  • DRAINAGE: They can also be spaced to allow for varying drainage requirements and are compatible with the AliDeck Balcony Drainage System
  • AESTHETICS: Aesthetics are key to a great finish; our boards are designed to look like decking but not to feel like aluminium
  • INSTALLATION: Speed and ease of installation are key to any project, so we have designed a board that has a unique invisible (structural) top clip system which can be installed from the top down. The board can also be trimmed down the length to match any projection of balcony and still be structurally stable across the whole plank.

  • SLIP RESISTANCE: See table below.

Pendulum Test Values (PTVs) – Low Slip Potential 35+ | Moderate Slip Potential 25-35 | High Slip Potential 0-25

  • Please Note: The test is conducted 8 times, with the first three tests being ‘warm up tests’ the data then starts to be recorded upon the 4th test. The average is taken from the 5 tests and is shown in the column marked MEAN. The directions are; Length, Width & Diagonal. Each direction has a score depending on wet and dry conditions. Direction A is length, direction B is width, and direction C is diagonal. The tests were carried out in accordance with BS7976 part 2. The full test report is available on our downloads page.

AliDeck Eco 50 Joist

The AliDeck Eco 50 Joist is an integral part of the AliDeck System. This extrusion is designed to act as a support and a joist for the complete range of AliDeck boards for use on steel or concrete balconies, terrace and walkway decking areas that require adjustable heights. This joist works in conjunction with the AliDeck Adjustable Pedestals and the rest of the AliDeck board range.

  • Spans max: Up to 1000mm

  • Fire Rated: A1 (mill finish), A2-s1, d0 & A2fl-s1

  • Weight: 1.576kg per linear metre

  • Coating Thickness: 60-80 Microns

  • Colours: Full Range of AliDeck Colours

  • Stock Extrusion Length: 6m

  • Warranty: 30 Years

  • Life Expectancy: 60 Years

The Eco 50 Joist can span a maximum of 1000mm between pedestals on a 4kN distributed loading

Eco 50 joist is our value engineered low-profile support bearer, specifically designed for installations that require extremely low build-up in the most cost effective manor.

Adjustable Pedestal with Carrier

Adjustable Pedestal with carriers are a value-engineered product specially designed to offer complete flexibility across an installation with a build-up height minimum of 106mm and maximum 335mm. This A fire rated product works seamlessly with all of our joists.
